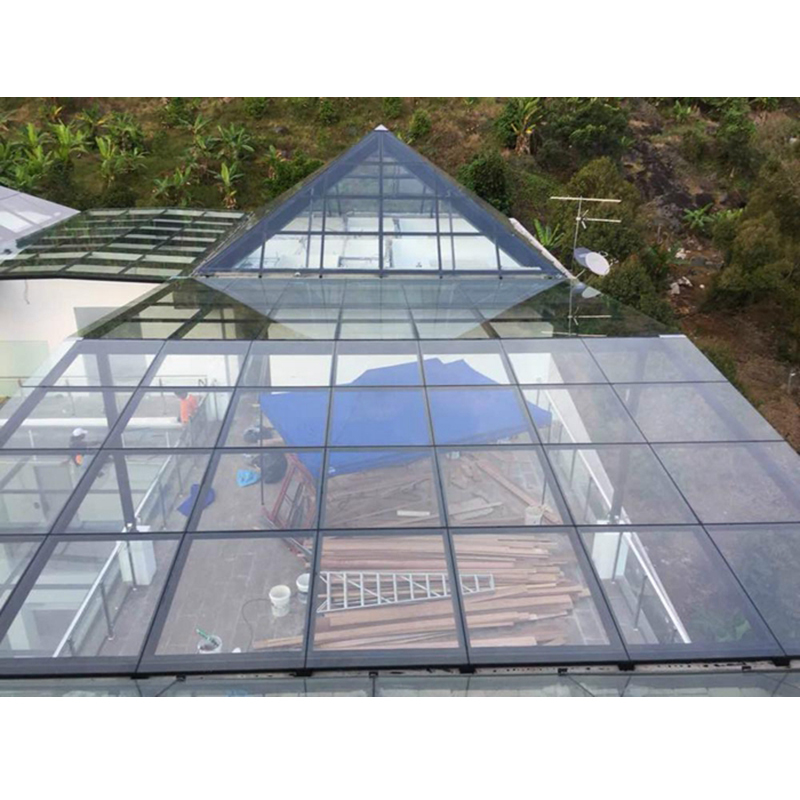

Name: Sunroom Construction Customized Design Skylight Dome Safety clear Pvb Sgp Interlayer Flat Tempered Laminated Glass Roof Panels
Brand: Shenzhen Dayang Special Glass Co., Ltd.
Availability: InStock

Home Products Glass Building Application

Sunroom Construction Customized Design Skylight Dome Safety clear Pvb Sgp Interlayer Flat Tempered Laminated Glass Roof Panels

Product Details:

Contact Now

Detailed Product Description

原产地:	Guangdong, China	品牌:	DYSG
型号:	DYSG	质保服务:	5年以上
形状:	平顶	结构:	纯色, 空心的
售后服务:	现场检测, 线上技术支持, 现场指导, 现场安装, 免费备件	工程解决方案能力:	整体解决方案, 3D建模设计, 跨品类组货, 平面设计
应用场景:	庭院, 休闲场所, 超市, 田园, 洗衣房, 厂房, 厨房, 学校, 卫浴, 儿童房, 卧室, 室外, 餐厅, 仓库, 书房, 楼梯, 户外, 客厅, Park, 酒窖, 办公楼, 储物 & 衣帽间, 健身房, Mall, 玄关, 公寓, 体育场所, 地下室, 医院, 别墅, 酒店, 家庭酒吧, 走廊, 车库&车棚	用途:	工业, 医疗, 装饰, 光伏, 温室, 幕墙, 扶手栏杆, 光学成像, 灯饰, 防弹, 显示屏, 仪器设备
厚度:	3毫米-25毫米的玻璃, 3-25mm对于单玻璃	Max.尺寸:	3300x12500mm
玻璃类型:	浮子/淬火/艺术玻璃/数码印花	处理:	淬火/孔/槽
夹层:	PVB,SGP,EVA,PU	功能:	隔音，安全，太阳能控制，节能
证书:	CE，ISO、ASTM、BS……	应用:	建筑玻璃
边缘:	抛光的边缘	最小起订量:	1 SQM

Product Description

Thickness	2mm 3mm 4mm 5mm 6mm 8mm 9mm 10mm 12mm 15mm 19mm for each panel
Color	Blue: Sky Blue; Lake Blue; Dark Blue;Light Blue,ocean blue. Grey: Euro Grey; Dark Grey, Light Grey Green: F. Green (Light Green), Dark Green Bronze: Golden Bronze, Red Bronze Pink,Golden,Clear etc.
Size(mm)	20001500 22001500 21341524 24401830 33002134 33002140 21401650 24401650 33002440 36602140 3660*2440
PVB Color	Blue,Grey,green ,bronze,pink,etc
PVB Thickness	0.38mm,0.76mm,1.14mm,1.52mm etc
Applicant	Door, window, curtain wall, ceiling, floor, partition wall, roof daylighting, show window of the shop and roof window of factory building. There is extensive application in vehicle, steamer, bank, jeweler's shop, villa, etc.
Delivery	7-15 days

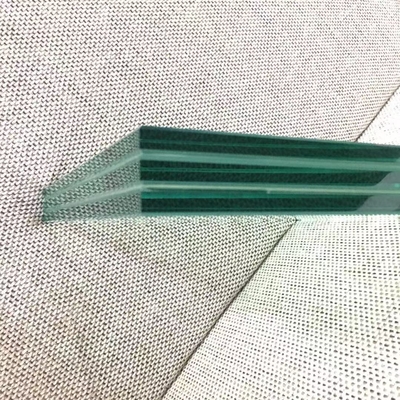

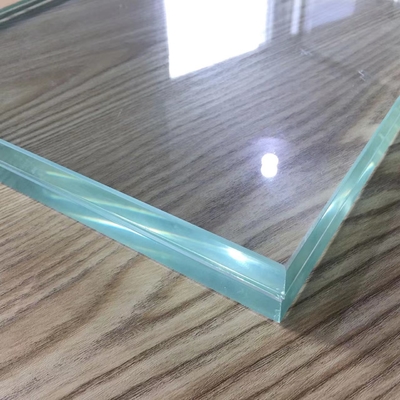

Dayang produce laminated glass by high quality adhesive interlayer and advanced bond technology. Tempered laminated glass is produced by adhering two or more pieces of tempered glass together by inyerlayer film like PVB/SGP/EVA. The interlayer film will continue to hold the glass together in the event that it is struck or dropped.

Tempered/ Toughened Laminated Glass is made by use two or more pieces of tempered glass and adhesive interlayer, the tow pieces of glass are bond together with advanced technology. After a PVB interlayer has been placed between the glass sheets, the whole assembly is subjected to heat and pressure. This makes the complete adhesion of the vinyl and the glass. In the event of breakage, the glass fragments remain bonded to the plastic interlayer.

Main Features of laminate glass:

1. Extremely high safety: The PVB laminated glass withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter.
2. Energy-saving building materials: PVB Laminated glass impedes the transmission of solar heat and reduces cooling loads.
3. Create aesthetic sense to buildings: PVB Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views.
4. Sound control: PVB Interlayer film is an effective absorb of sound.5. Tempered laminated galas widely used in modern construction, such as window, door, balustrade, shower room, partition, floor, roof, curtain wall, greenhouse etc.

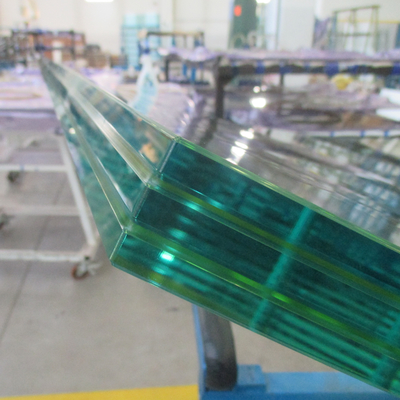

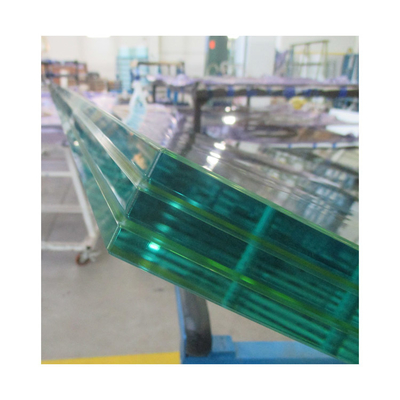

We can also produce oversize laminated glass:

The laminated glass laminated room must be insulated, airtight and dust-free. Strictly control the temperature and humidity, the temperature should be in the range of 20±5℃, the humidity should be in the range of 22-28%, and the limit humidity should be ≤32%.

Other Types Laminated Glass:

We can also produce other types laminated glass such as: insulated laminated glass, digital printing laminated glass, curved laminated glass, colored laminated glass, textured laminated glass, gridded fluted laminated glass, art laminated glass.

Production process

Packing & Delivery

The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request. Shipping packaging and air packaging will be different, we will make corresponding adjustments according to the requirements of the logistics company.

Our Factory

Shenzhen Dayang Special Glass Co., Ltd engaged in the research, development, sale and service of building glass such as tempered glass, laminated glass, curved glass, insulated glass, energy-saving glass, complex glass, ceramic frit glass, art stained glass, magic switchable glass and film, etc.. Locating in Shenzhen (near by Hongkong) which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, we are able to fulfill your demands and ensure full customer satisfaction. We can process any surface shape multi-curved tempered glass, double curved tempered glass, triple curved tempered glass, trapezoid curved tempered glass, spherical curved tempered glass, pyramidal curved tempered glass, S-shape curved tempered glass, cylindrical curved tempered glass, positive and negative curved tempered glass.

Our Certification

Feedbacks of Dayang Glass

Here are some of the feedbacks from our clients for your reference:

FAQ

Q.What kind of service you can offer? OEM:We produce according to buyer's design. ODM:We provide design & products. Q.Are you a trading company or a factory ? We have our own factory, with Alibaba Verified. Q.Can your factory put our brand on the product? Our factory can print customer's logo on the product with the authority from customers. Q: Which terms of delivery do you support? We support EXW, FOB, CNF, CIF, and Express Delivery(UPS, FedEx, DHL, TNT, and EMS). Q: Which methods of payment do you support? We support TT, L/C,DP,PayPal, Western Union, and cash(RMB). Q. How to get a quotation? We need some time to calculate and also need specific information from you.Information required for quotation will be different among the different types of items. Such as: a. Glass dimensions. b. Order quantity. c. Cutting rate.
